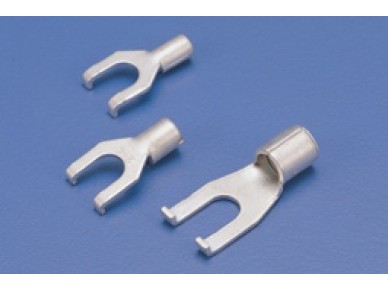

Y型端子
Y型端子
.jpg)
規格如下
|
|||||||
| 型 號 Item No. |
螺絲孔 D |
寬 W |
電線規格 | 包 裝 Packing |
|||
| AWG | mm2 | ||||||
| Y1.25-3S | 3.7 | 5.7 | 22-16 | 0.5-1.0 | 100 pcs / 包 | ||
| Y1.25-3 | 3.7 | 6.2 | |||||
| Y1.25-4S | 4.3 | 6.4 | |||||
| Y1.25-4 | 4.3 | 7.2 | |||||
| Y1.25-5 | 5.3 | 8.0 | |||||
| Y1.25-6 | 6.4 | 9.7 | |||||
| Y2-3S | 3.7 | 5.7 | 16-14 | 1.5-2.5 | |||
| Y2-3 | 3.7 | 6.2 | |||||
| Y2-4S | 4.3 | 6.5 | |||||
| Y2-4 | 4.3 | 7.2 | |||||
| Y2-5 | 5.3 | 8.0 | |||||
| Y2-6 | 6.4 | 10.7 | |||||
| Y3.5-3S | 3.7 | 6.4 | 14-12 | 2.5-4.0 | |||
| Y3.5-3 | 3.7 | 7.4 | |||||
| Y3.5-4 | 4.3 | 8.0 | |||||
| Y3.5-5 | 5.3 | 8.0 | |||||
| Y5.5-3 | 3.7 | 8.2 | 12-10 | 4.0-6.0 | |||
| Y5.5-4S | 4.3 | 7.2 | |||||
| Y5.5-4 | 4.3 | 8.2 | |||||
| Y5.5-5 | 5.3 | 9.0 | |||||
| Y5.5-6 | 6.4 | 12.0 | |||||
| Y8-4 | 4.3 | 8.2 | 8 | 10.0 | |||
| Y8-5 | 5.3 | 9.0 | |||||
| Y8-6 | 6.4 | 12.0 | |||||
| Y14-6 | 6.4 | 12.0 | 6 | 16.0 | |||
| Y22-8 | 8.4 | 13.0 | 4 | 25.0 | pcs | ||
